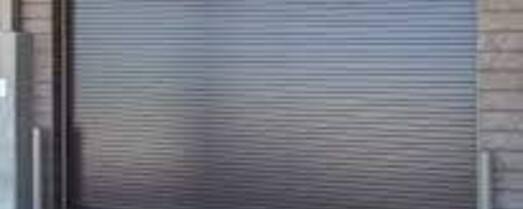

The Everserve™ door platform is an industry leading performance driven solution to enhance our rolling steel product line. The EverServe™ door system provides customers with high cycle performance, improved security and durability while delivering a reliable system, minimizing downtime with ease of serviceability. The springless design builds on the proven construction of Overhead Door's rolling steel line, adding significant enhancements to provide 25 times the standard service door cycle life. Key features of the springless system include:
- Springless operation eliminating the need for a counterbalance
- Performance and functionality with minimum maintenance requirements
- 500,000 cycle life
- Universal companents for ease of maintenance
- Floor-level controller for ease of access control and maintenance
- Direct drive integrated gear/motor/brake assembly; built in braking mechanism provides additional peace-of-mind against uncontrolled curtain travel
- A variety of insulation, weather seal, and air flow options are available to satisfy applications in a wide range of environmental conditions
- Field-installable accessories such as radio controls or motion detectors to match a wide range of application requirements
- 36 month limited warranty on door system.
Choose from a selection of approximately 200 RAL powder coat colors to match the aesthetic and design of your project. Choose from PowderGuard Premium, a polyester powder coat or PowderGuard Max which is four times harder and provides enhanced strength.
Standard Exterrior Colors
 |
 |
 |
 |
| White | Gray | Tan | Brown |
Door Options
- Motor options: Available for supply voltages 220-240V AC 1-phase; 440-480V AC or 575V AC 3-phase (both 440-480 and 575V AC require transformer).
- Flat profile type F-265i for doors up to 30' wide. Available in: [Front Slat] 22, 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 18 gauge (.040") aluminum [Back Slat] 22 gauge steel; 24 gauge stainless steel; 22 gauge (.024") aluminum*
- Bottom bar also available in galvanized steel, stainless steel and aluminum
- Guide options include galvanized steel, power-coated steel
- Hood available in powder coat, stainless steel and aluminum; sloped hood also available
- Brackets also available in powder coat, galvanized steel
- IP65 (NEMA 4/4X equivalent) control panel
- Sensing edge for improved safety
- Additional set of photoelectric sensors
- Optional push buttons, loop detectors, radio control, motion detectors or any combination thereof available for door operation/control
- PowderGuard® Premium powder coat and PowderGuard® Max hardened powder coat available in approximately 200 colors as well as color-matching to specification
- PowderGuard® Textured Finish: Industrial textured powder coat provides a thicker, more scratch resistant coat for added product protection on guides, bottom bar and head plate

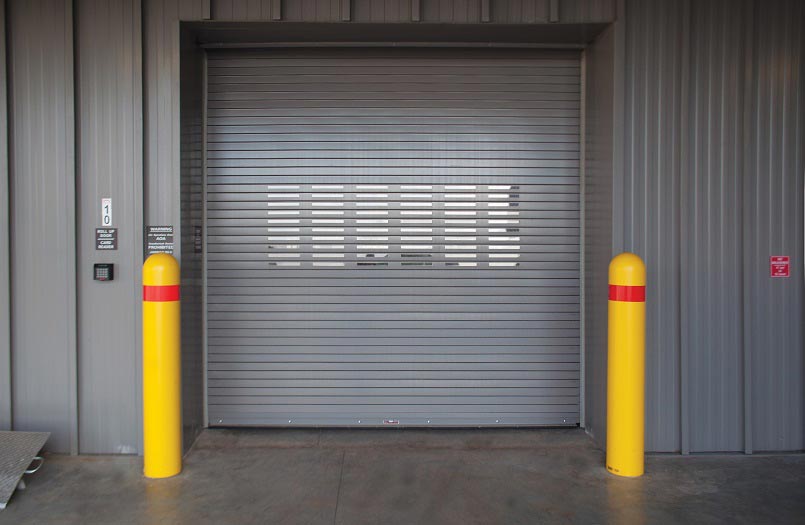

- Uniformly spaced glazed acrylic vision lites available in 10” x 1”
- High wind load options available
Features
Standard Max Width
up to 30' (9246 mm) depending on gauge and slat type
Standard Max Height
up to 20' (6096 mm) depending on gauge and slat type
Mounting
Interior or exterior face of wall
Control panel
Electronic controller with microprocessor self-diagnostics. Digital readout indicates door action, alarm conditions, and fault conditions. Time delay self-close timer and non-resettable cycle counter is included. One open/close/stop push button station integrated in control panel. Enclosure is IP54 rated (NEMA 3 equivalent).
Curtain
Galvanized steel interlocking roll-formed slats, end locks attached to prevent lateral movement; Insulated flat profile (F-265i) for doors up to 30' wide - front and back slats 24 gauge. Slat cavity shall be filled with CFC-free, foamed in-place, polyurethane insulation
Curtain finish
Gray, Tan, White or Brown polyester top coat
Bottom bar
Two PowderGuard® Premium powder coated black angles (min. thickness 3/16”) with weatherstrip
Hood
24-gauge galvanized steel primed; motor and end cover provided
Brackets
Min. ¼” hot rolled primed, PowderGuard® Premium powder coated black steel
Insulation
R-value* of 7.71 for energy-efficiency. U-value of .13 and STC rating of 21
Guides
Three structural steel angles PowderGuard® Premium powder coated black; With high cycle UHMW wear strip
Door roll
Direct driven, springless roll with integrated shafts; self-aligning grease-able sealed bearings; door does not require counterbalance device
Stormtite™ perimeter seal system
Exterior guide seal, interior hood baffle, bottom astragal
Safety devices
Built-in braking mechanism provides additional peace-of-mind against uncontrolled curtain travel.
Photoelectric safety sensors with guards - provide obstruction monitoring during door operation to help prevent injury and damage
Operation
Direct drive integrated gear/motor/brake assembly; Drive assembly and limit sensors are factory pre-assembled; Manual hand chain for power outage. Horsepower appropriate to door size/weight; 230V AC 3-phase motor (operating range 208-245V)
Actuator
Single open/close/stop push button station incorporated into control panel
Wind load
20 psf
Warranty
36 month limited warranty coverage on door system
