Rolling Service Doors

Rolling Service Commerical Garage Doors

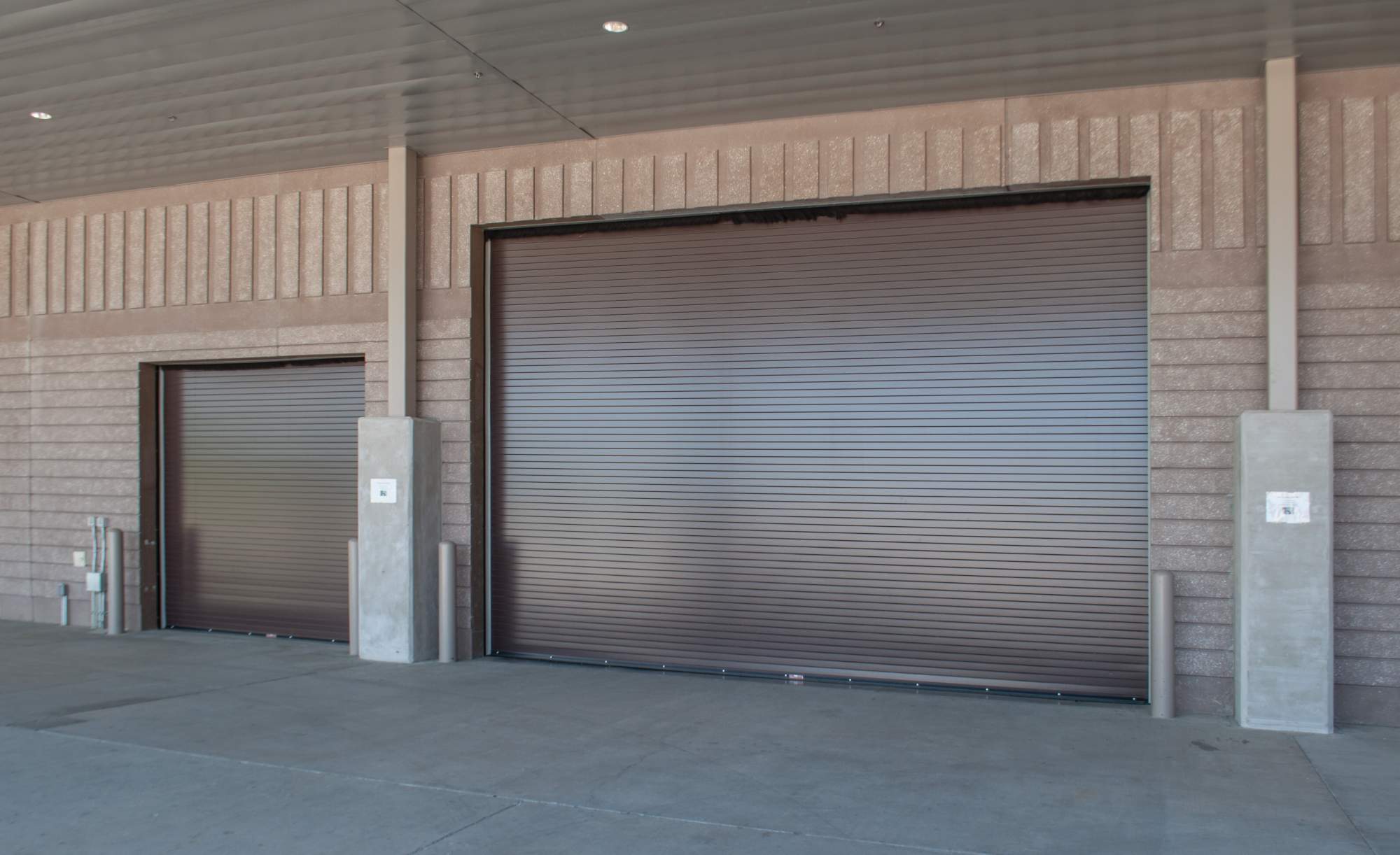

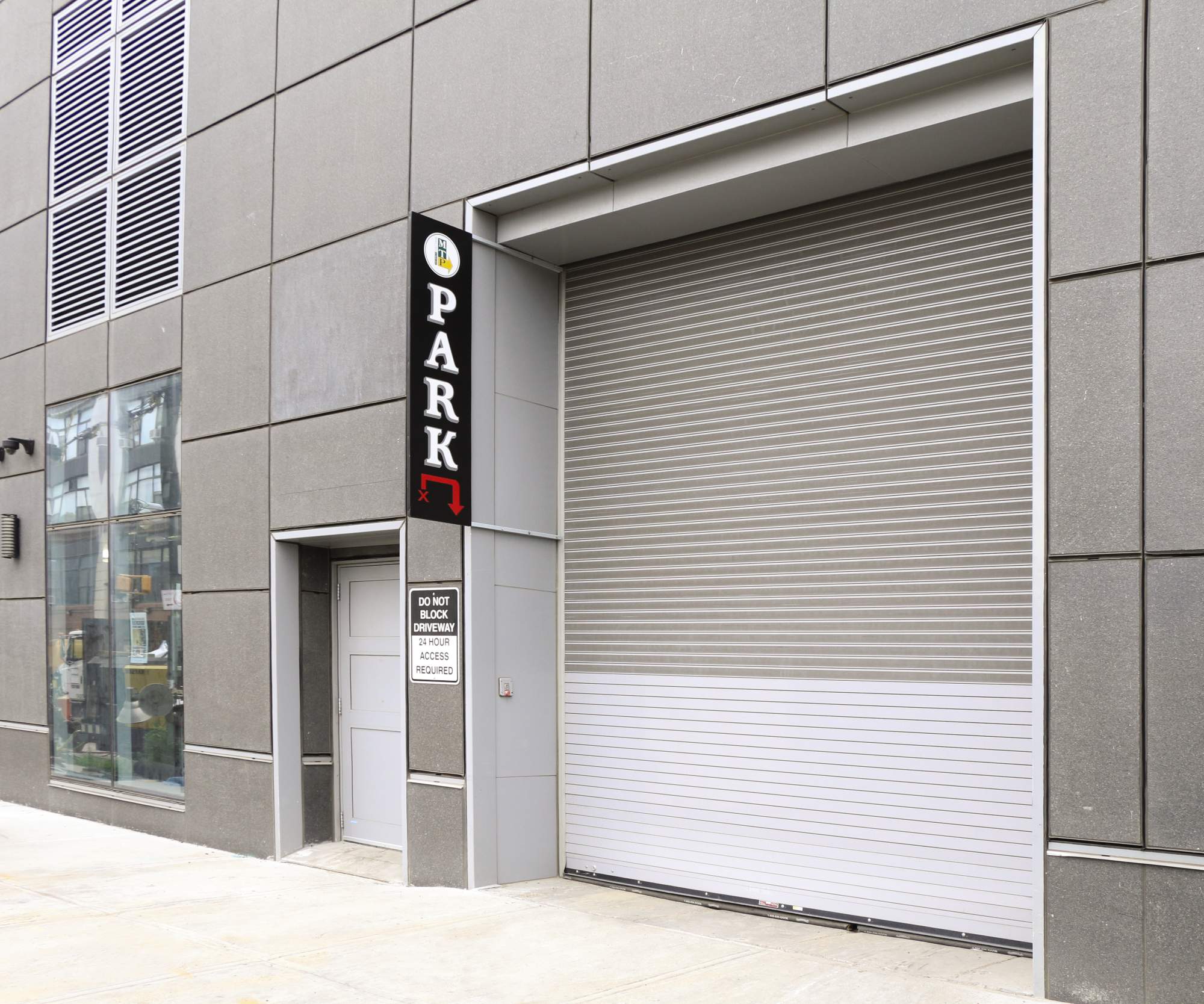

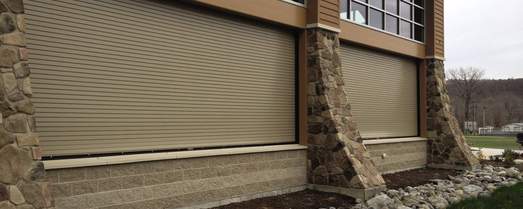

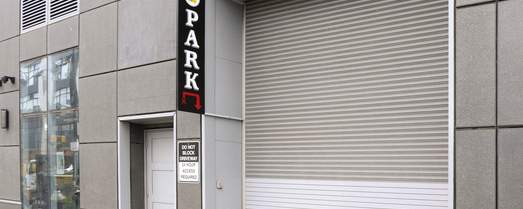

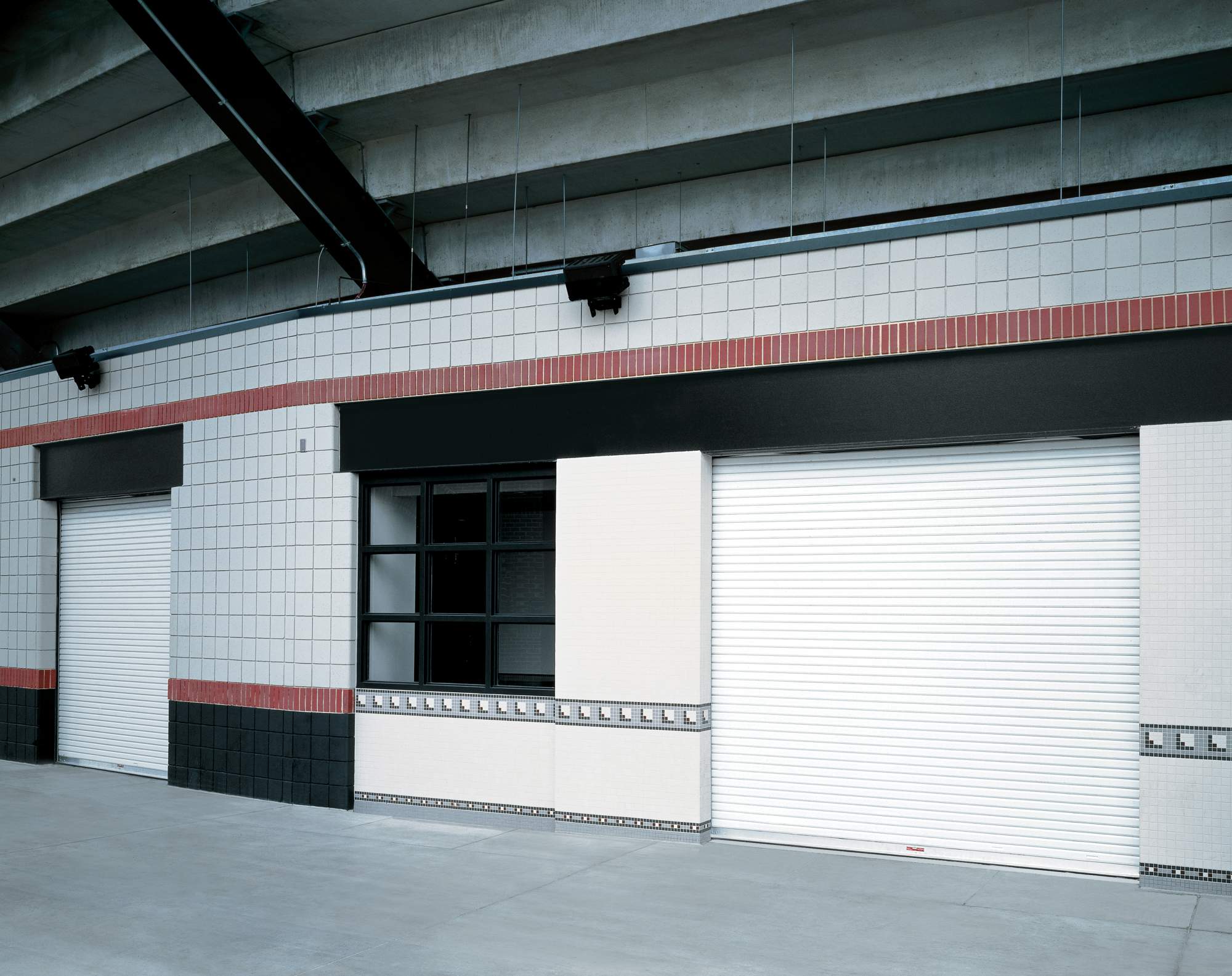

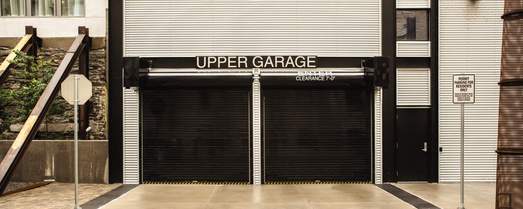

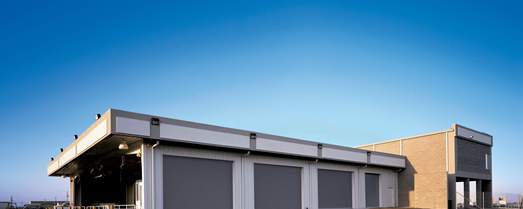

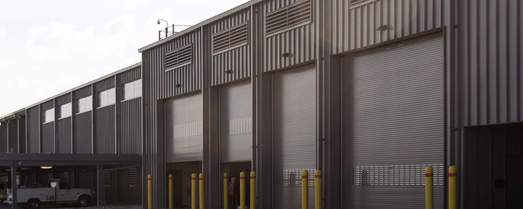

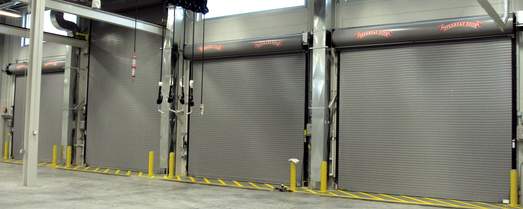

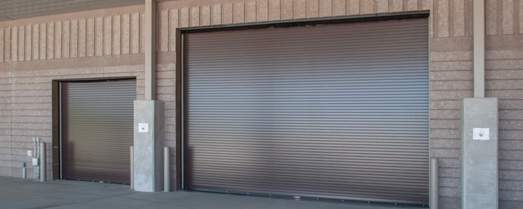

The breadth of the Overhead Door™ rolling service door product line ensures that your project specifications will be met with ease and style. Ideal for situations where side room and headroom are at a premium, our upward-coiling service doors fit openings up to 1500 sq. ft. (139,355 sq.mm) and are available with the industry's widest array of slat profiles, curtain materials, and colors, offering a virtually endless array of options to satisfy both aesthetic considerations and working requirements.

When your project requires an attractive and solidly constructed rolling sheet door that is also easy on your budget, Overhead Door™ rolling sheet doors are a perfect solution. These door systems incorporate innovative design elements that enable fast installation and ensure smooth operation for enhanced door life.

Request A Quote

Door Options

  • Roll-formed galvanized steel, stainless steel or aluminum curtains in weights from 26 to 14 gauge (not all gauges available in all materials)
  • Curved or flat slats in a range of sizes and profiles, including the C-600, a 6" (152 mm), 1 3/8" (35 mm) curved slat for heavy-duty applications
  • Finishes include primed and painted steel, clear or colored anodized aluminum, or PowderGuard™
  • Finish of up to 215 colors as well as color-matching to specification
  • Face of wall mounting is standard with between-jambs mounting available for medium- and heavy-duty doors

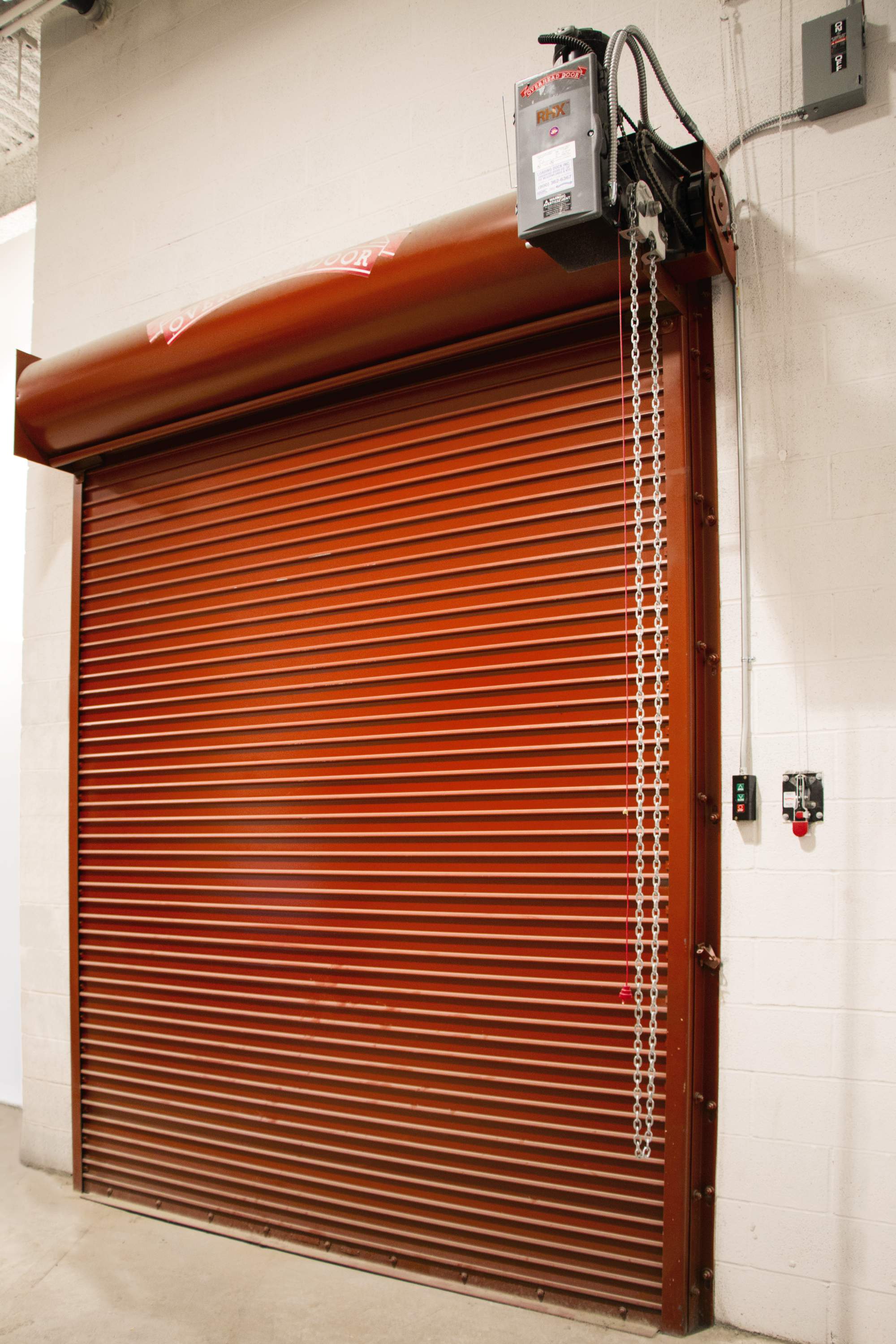

  • Push-up, chain-hoist, crank or motor operation available

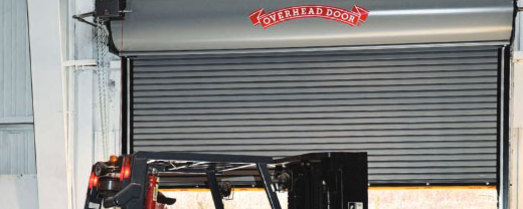

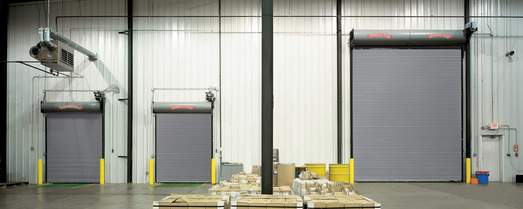

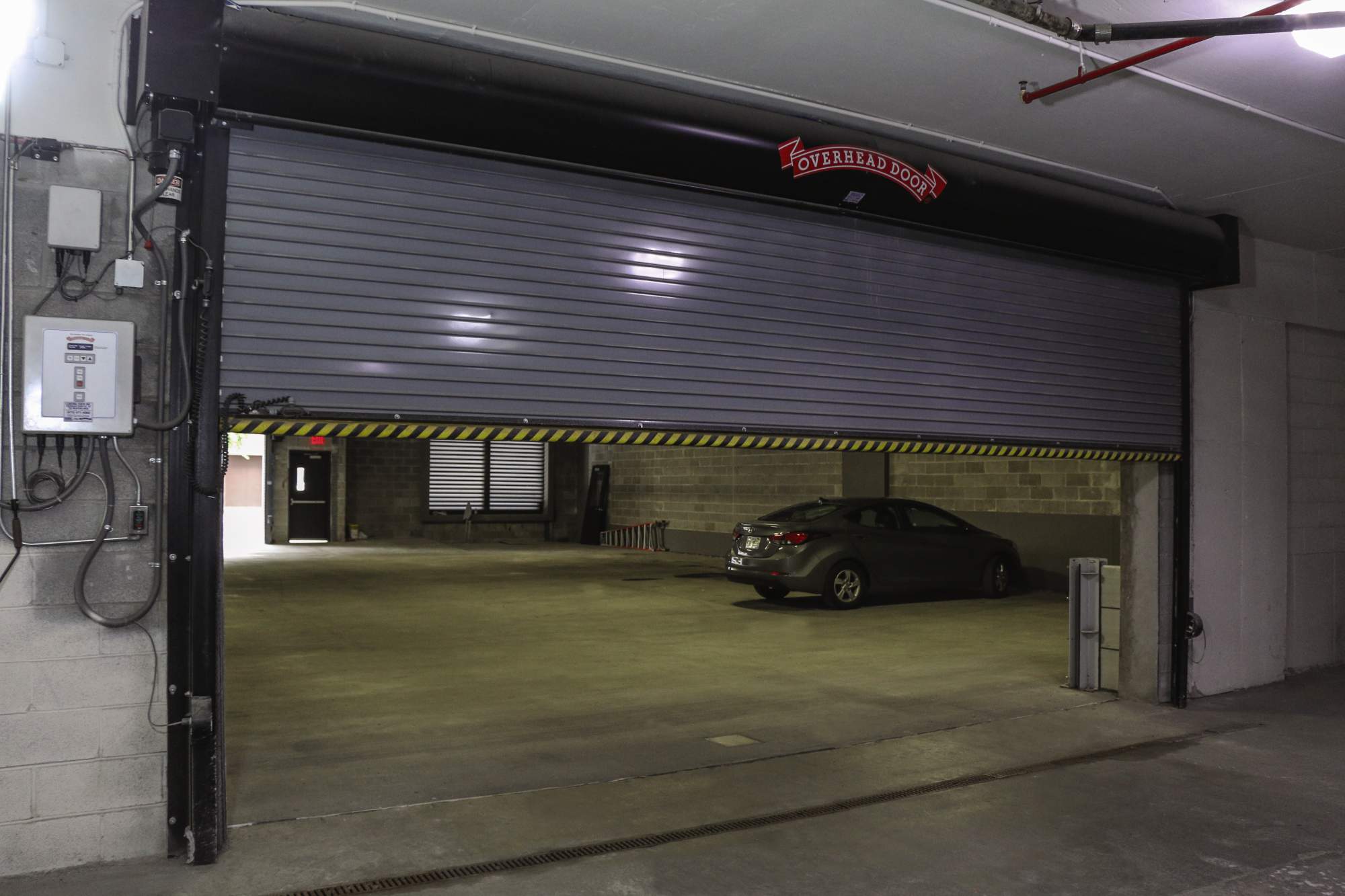

  • Electric motor option with an array of radio and remote controls simplifies door operation

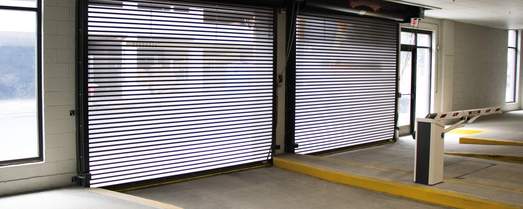

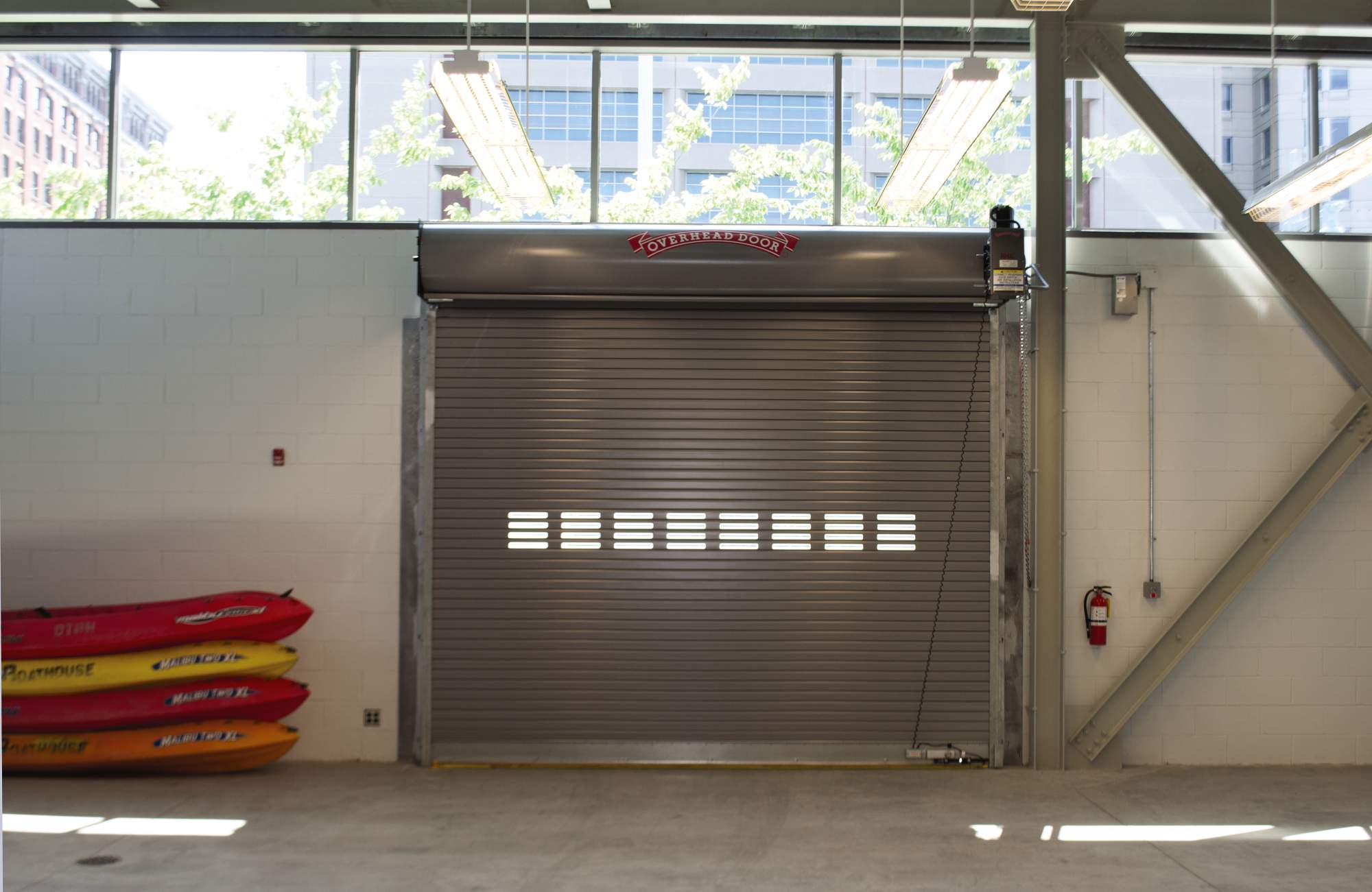

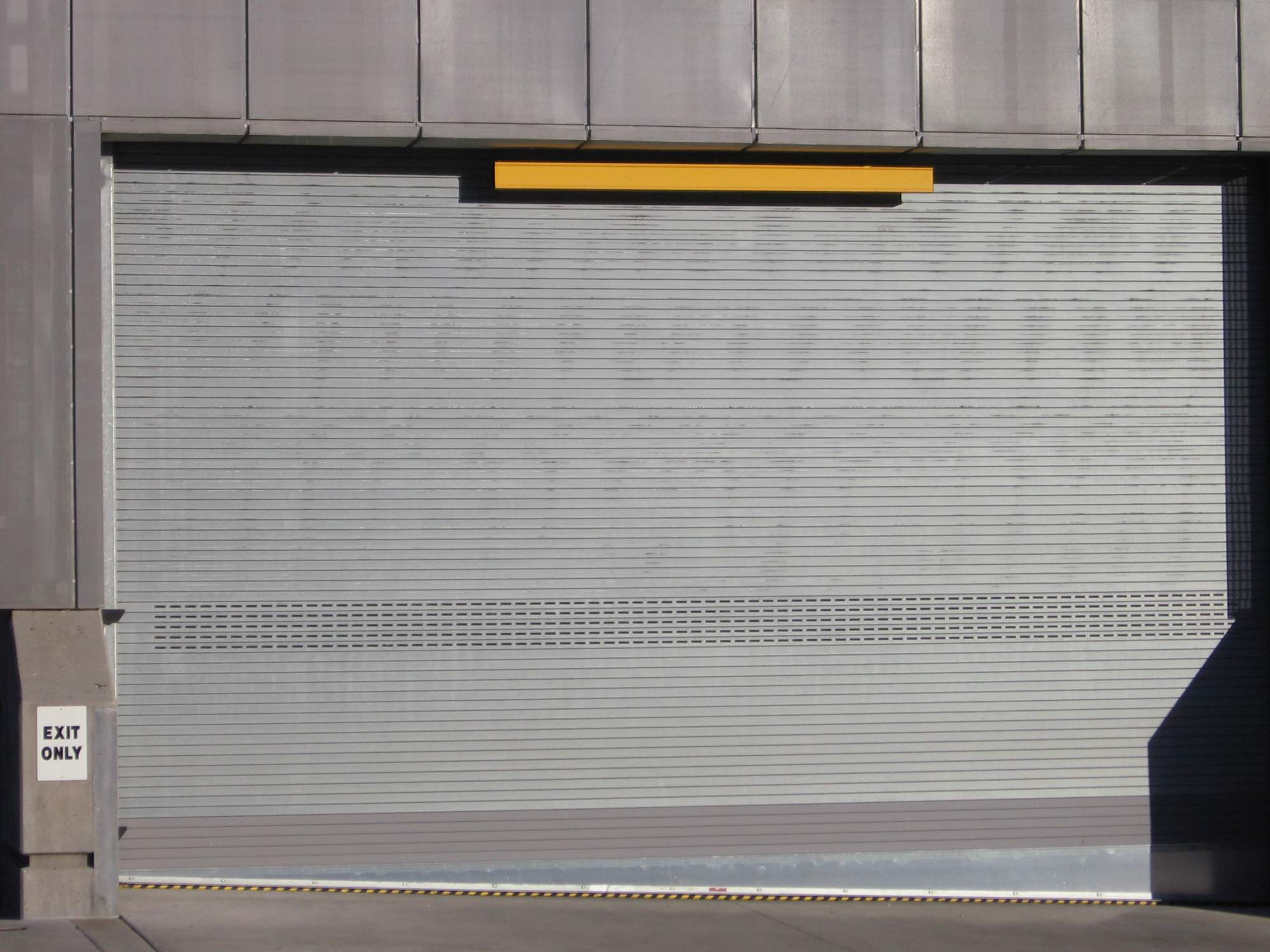

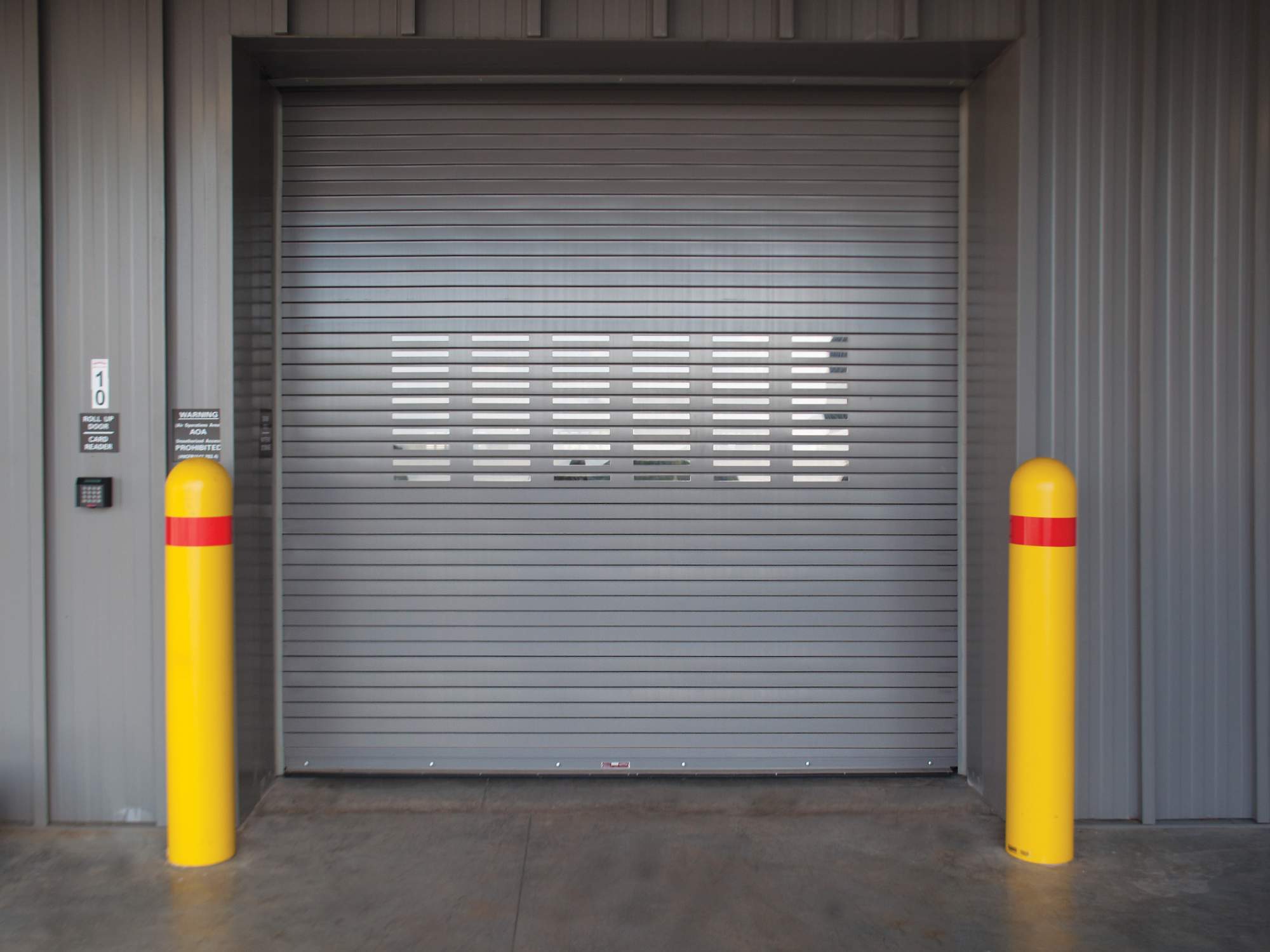

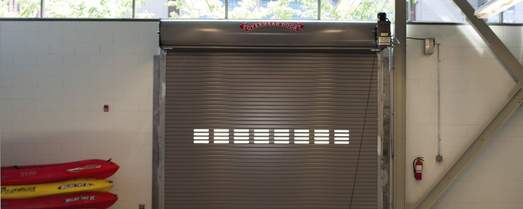

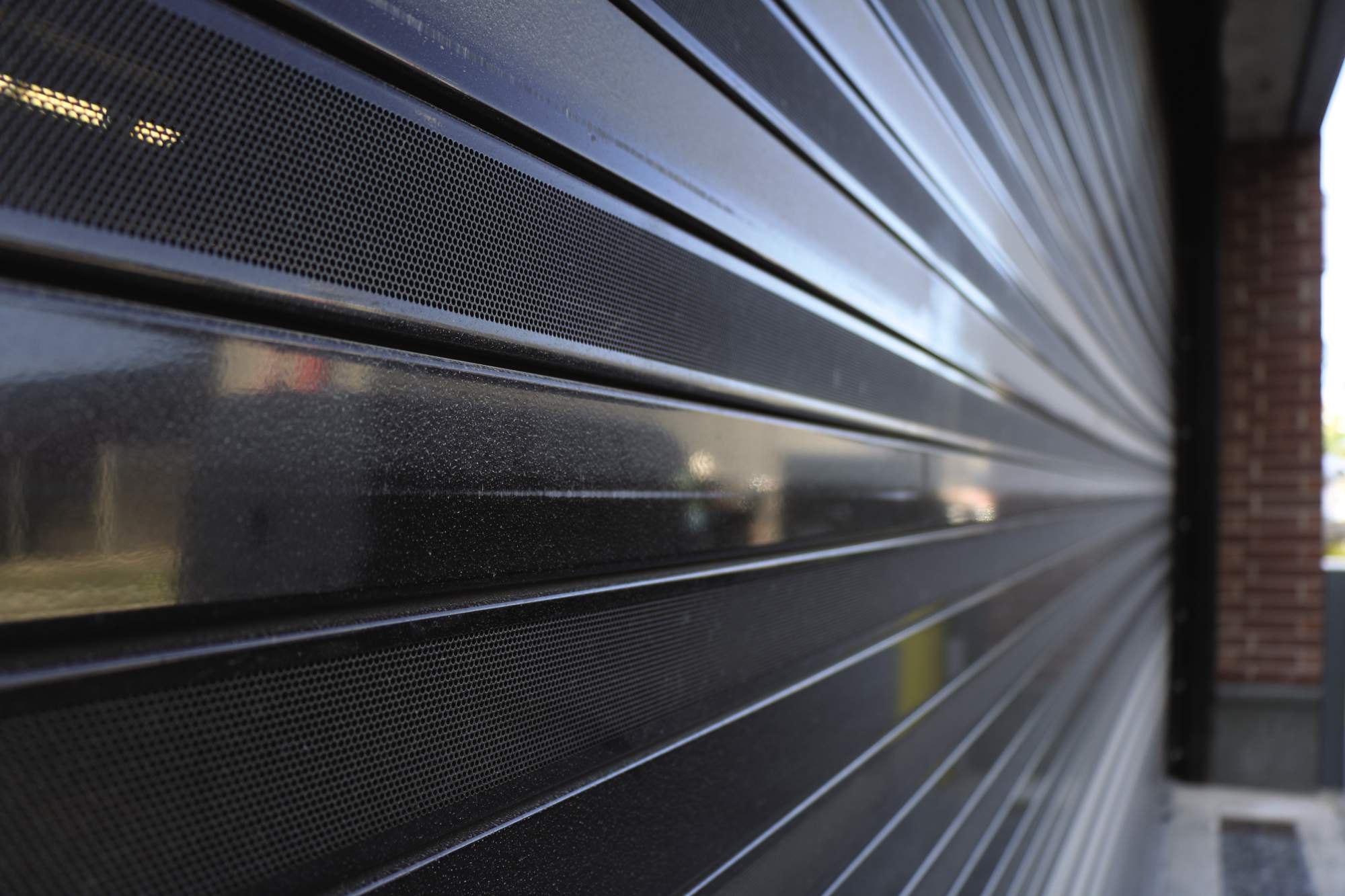

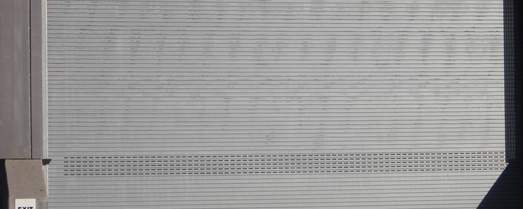

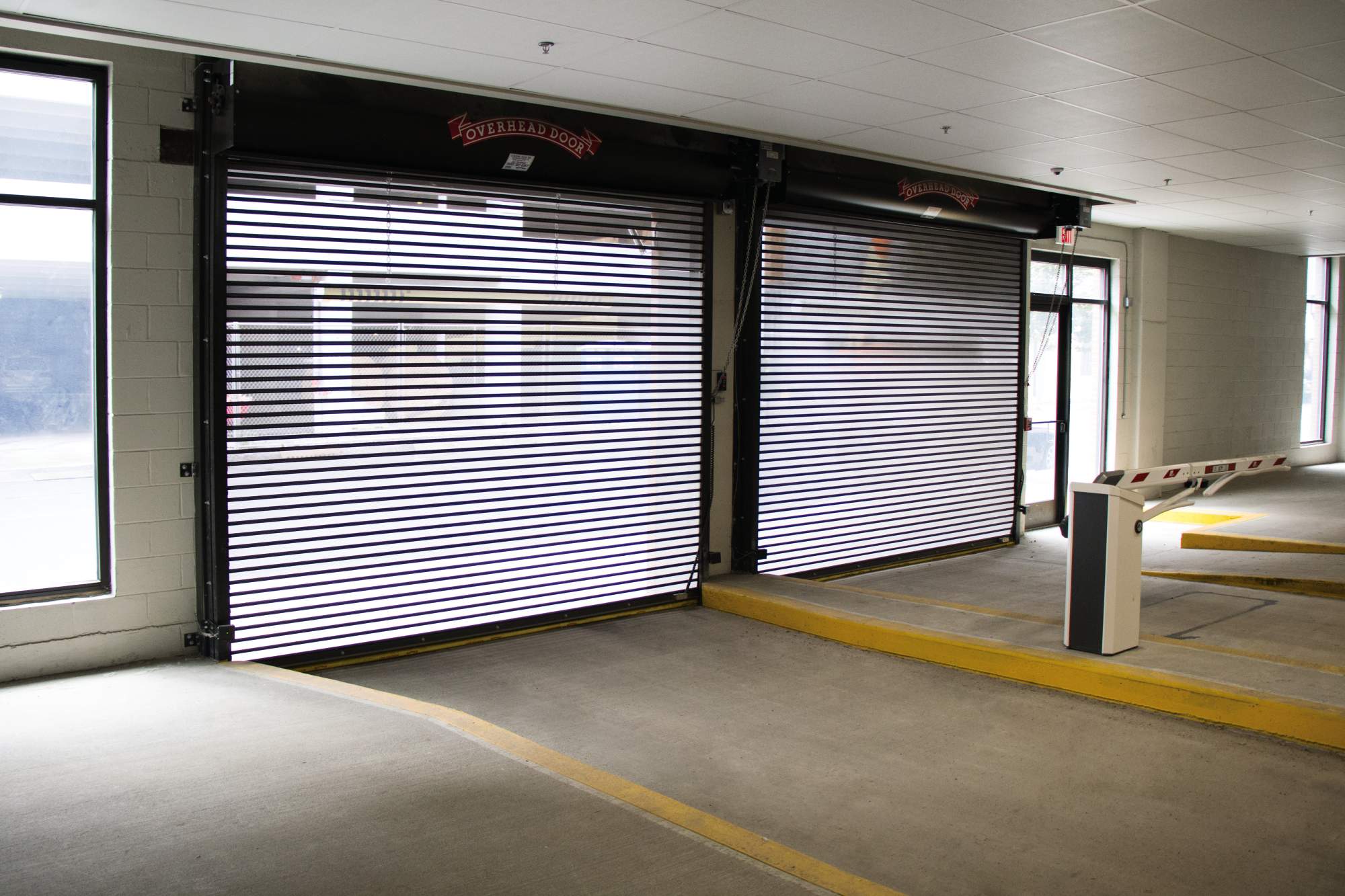

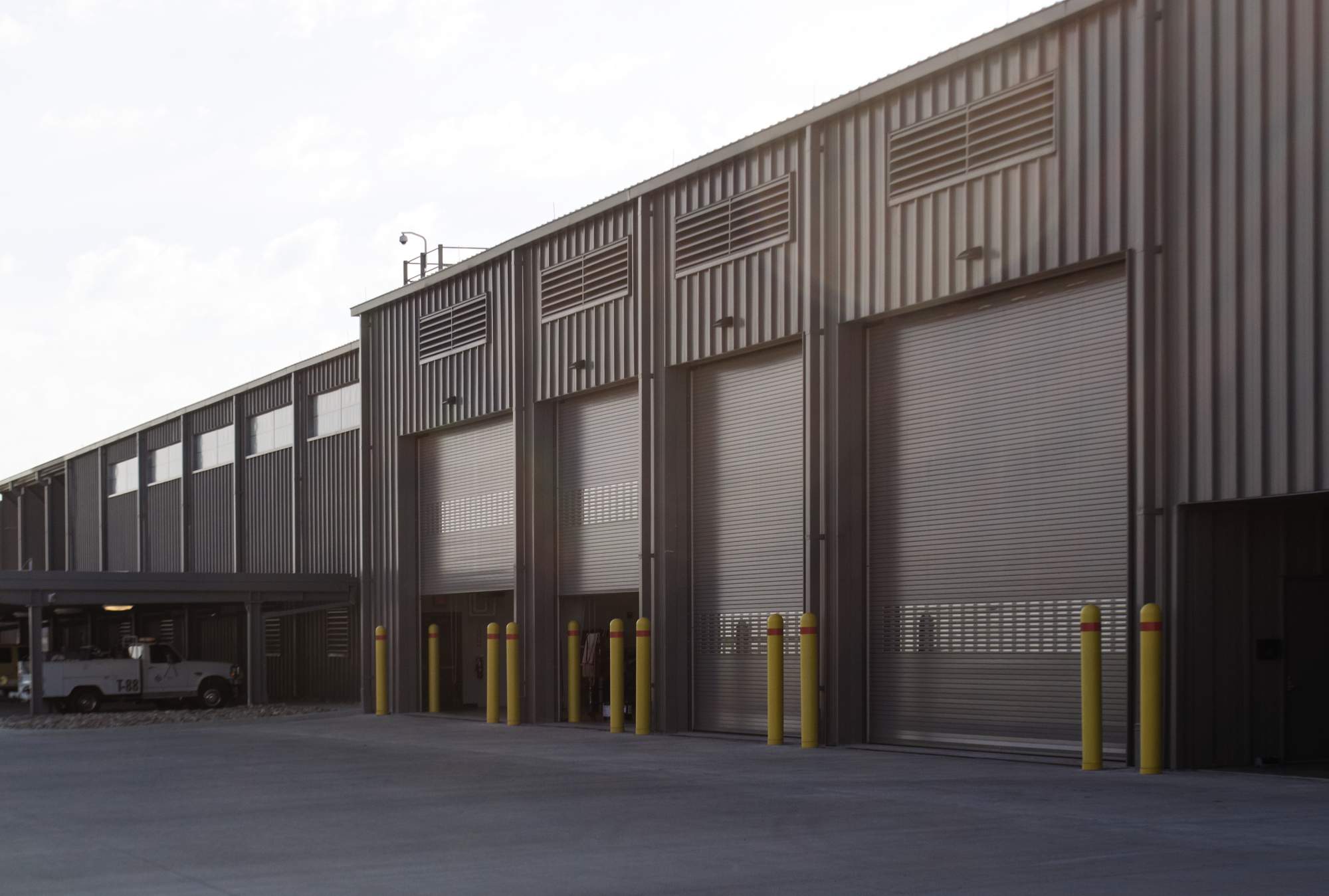

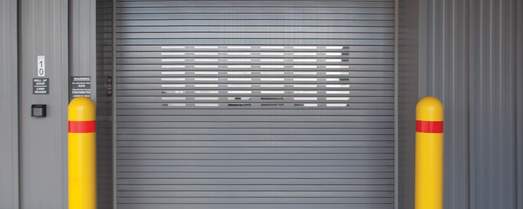

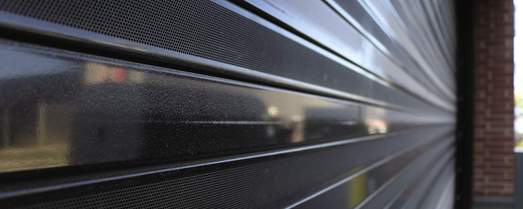

  • Ventilated slats with perforations or fenestration extend applications to open-air environments
  • Weatherstripping and/or insulated slats offer additional protection against air infiltration

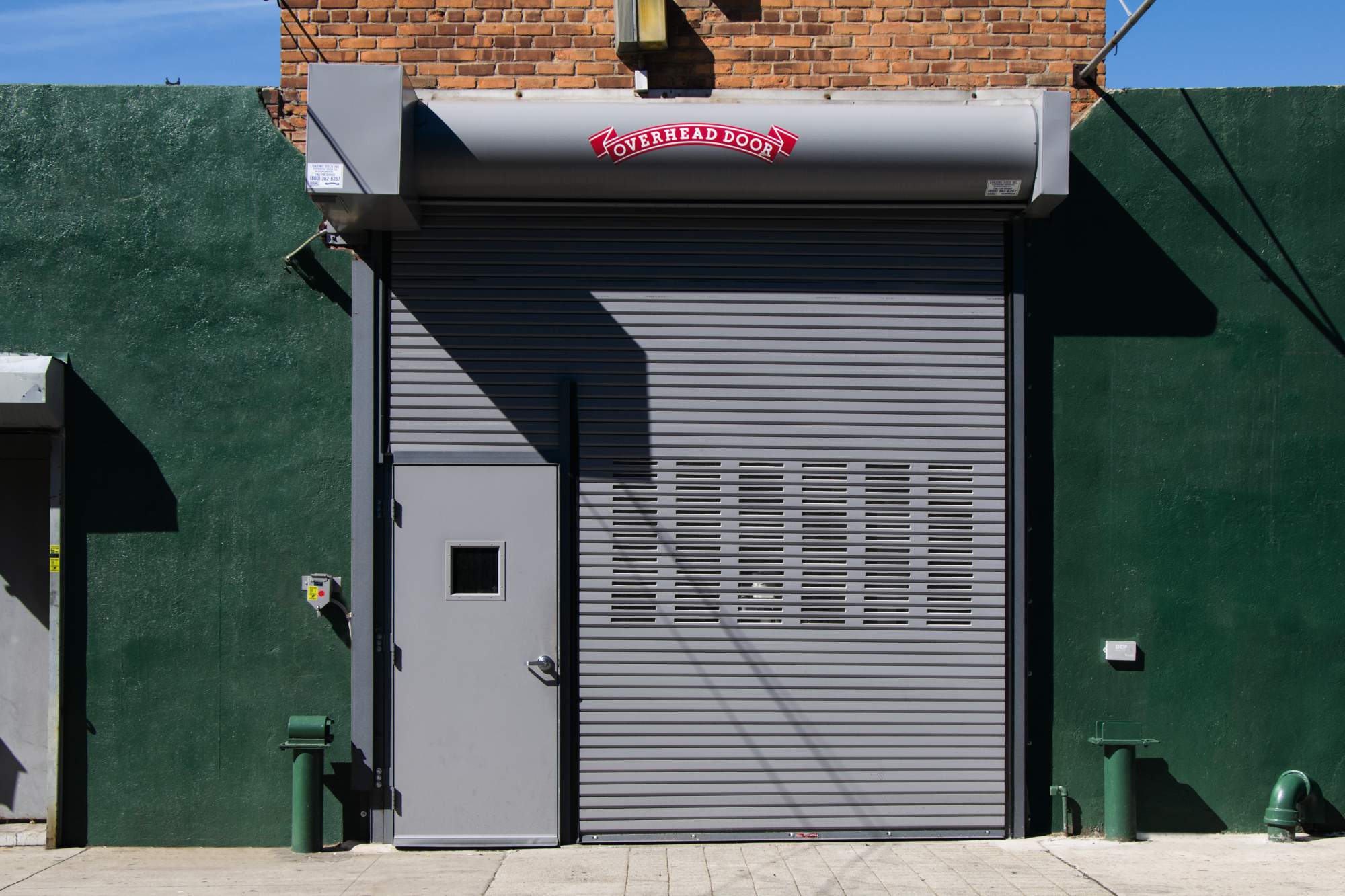

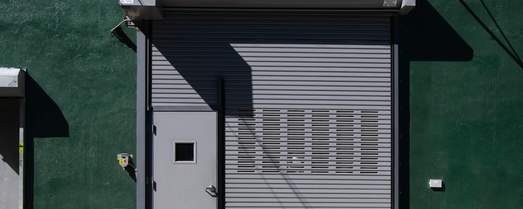

  • High-usage package and pedestrian pass doors available for special applications

Features

  • Galvanized steel, stainless steel and aluminum doors in a variety of gauges, slat profiles, finishes and options
  • Standard door widths up to 30' (9144 mm) and 28' (8534 mm) in height, and custom door sizes up to 1500 sq. ft. (139,355 sq.mm)
  • Rolling service doors for heavy-duty, medium-duty and lightduty applications
  • Coil-Away™ 600 Series door offers an economical solution for openings to 16' wide and 16' high (4877 mm and 4877 mm)
  • Stormtite™ 620 and Stormtite™ 625 Series insulated doors provide extra protection against the elements
  • Solid construction withstands windloading of 20 psf, with a higher windload option to meet requirements
  • Structural steel angle or roll-formed guide design ensures smooth curtain operation
  • Steel plate brackets provide additional strength
  • Helical torsion springs designed for 20,000 cycles, with high usage option to 100,000 cycles
  • Each door is computer-designed to ensure precision manufacturing and facilitate installation
  • Computer-matched door counterbalance system and optional motor operator promote precision operation and performance

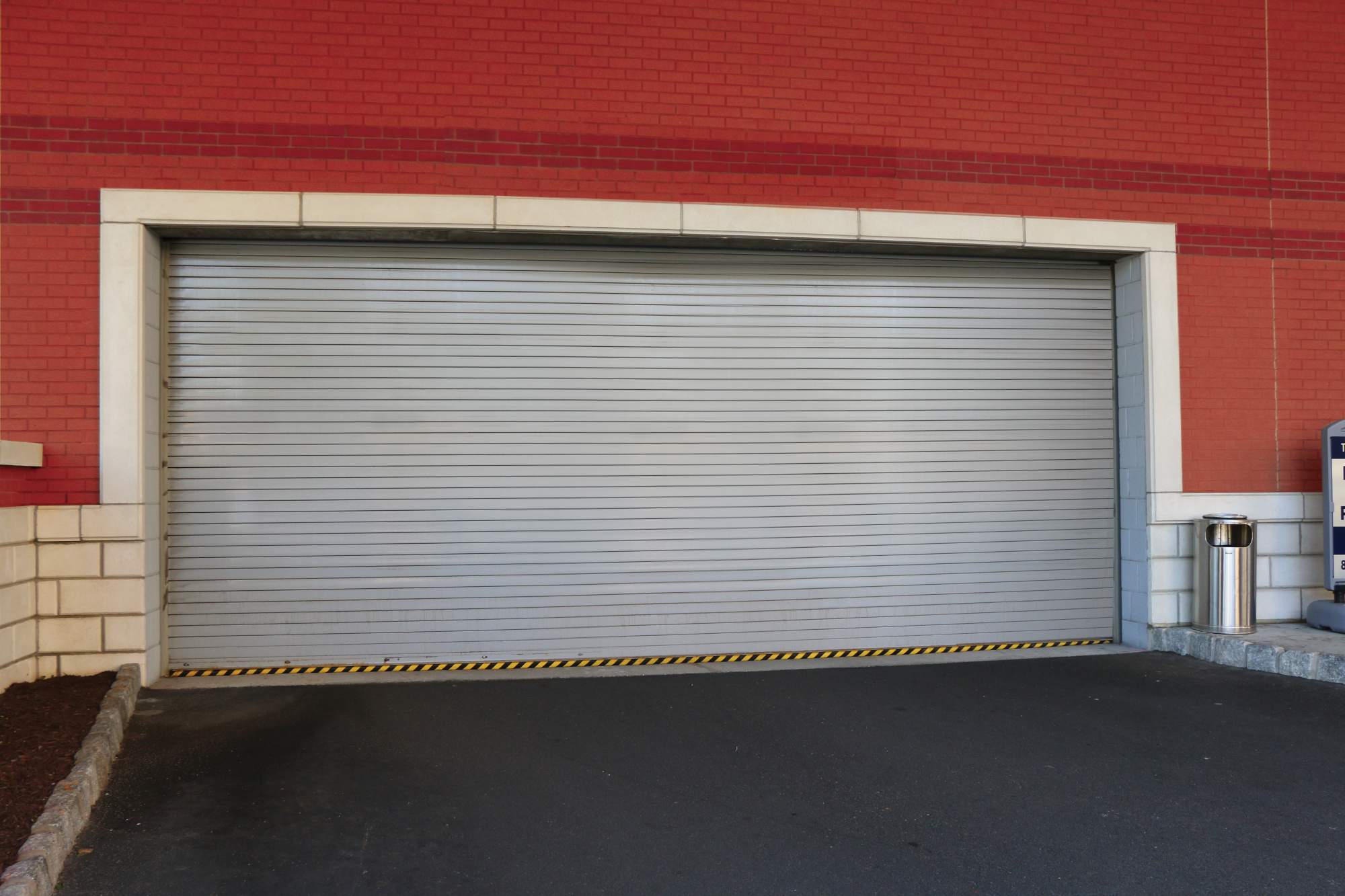

Rolling Steel Doors

Fabricated of interlocking steel, stainless steel or aluminum curtains in a variety of slat profiles, finishes, and options, our doors are designed for durability, serviceability and good looks. Each of our rolling service doors is computer designed to your specifications, then solidly constructed to promote easy installation, trouble-free operation and long life. From the lightweight, economical 26-gauge Coil-Away™ door to the 14-gauge C-600 slat 610 Series door, our comprehensive system of rolling service doors covers the spectrum of commercial/industrial applications.

Series Image Max
WIDTH
Max
HEIGHT
Insulation Warranty

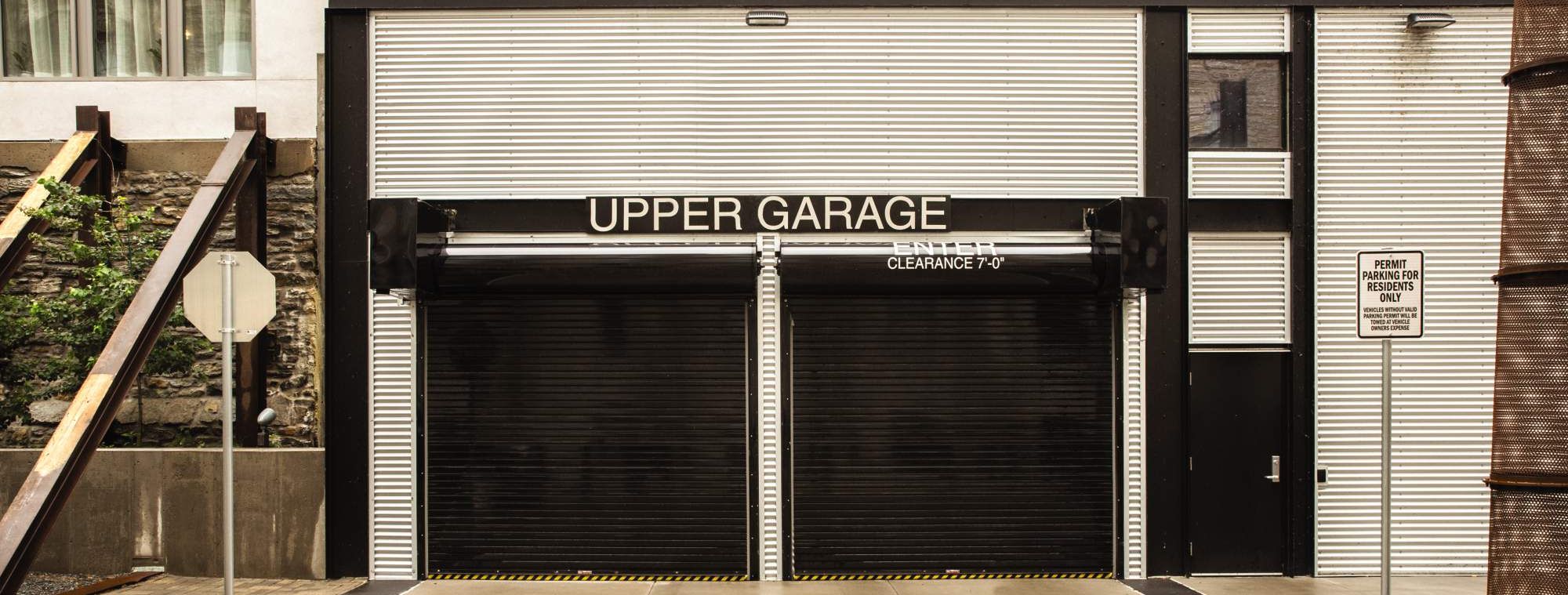

625 Rolling Steel Door

 30'
(9144 mm)

28'
(8534 mm)

R-value
7.7

15-month
limited
Warranty

620 Rolling Steel Door

30'
(9144 mm)

 28'
(8534 mm)

Non
Insulated

15-month
limited
Warranty

610 Rolling Steel Door

30'
(9144 mm)

28'
(8534 mm)

Non
Insulated

15-month
limited
Warranty

600 Rolling Steel Door

16'
(4877 mm)

16'
(4877 mm)

Non
Insulated

15-month
limited
Warranty

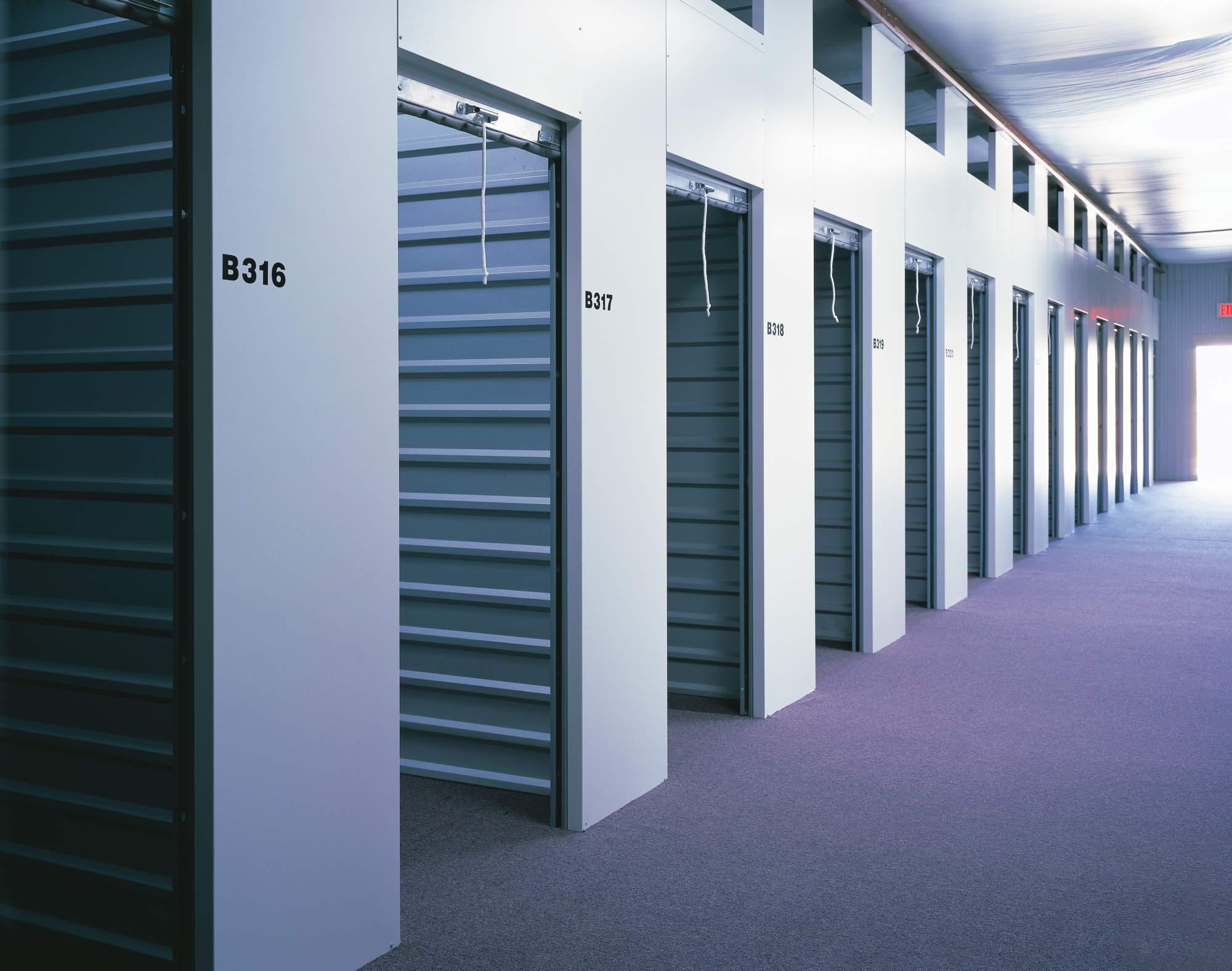

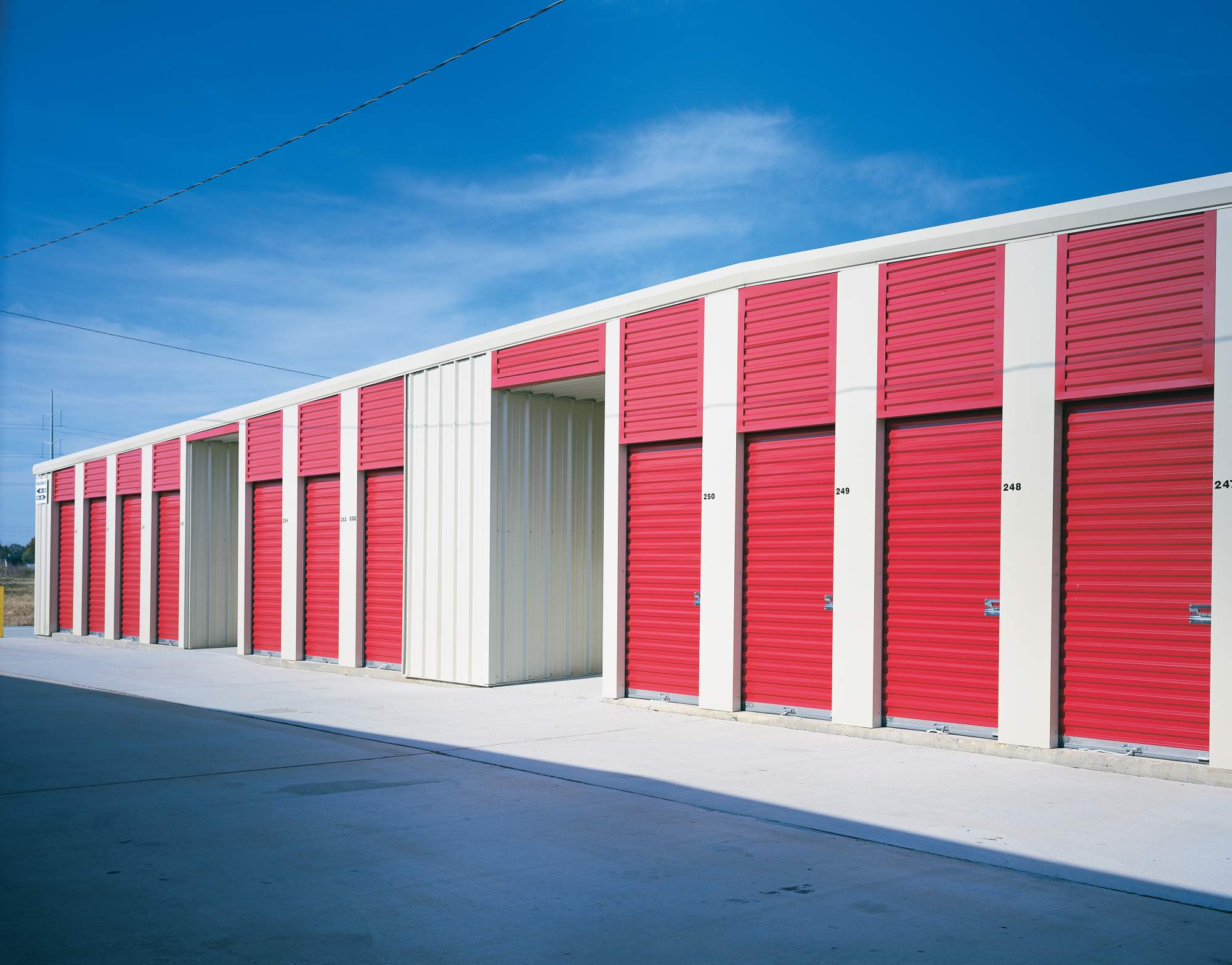

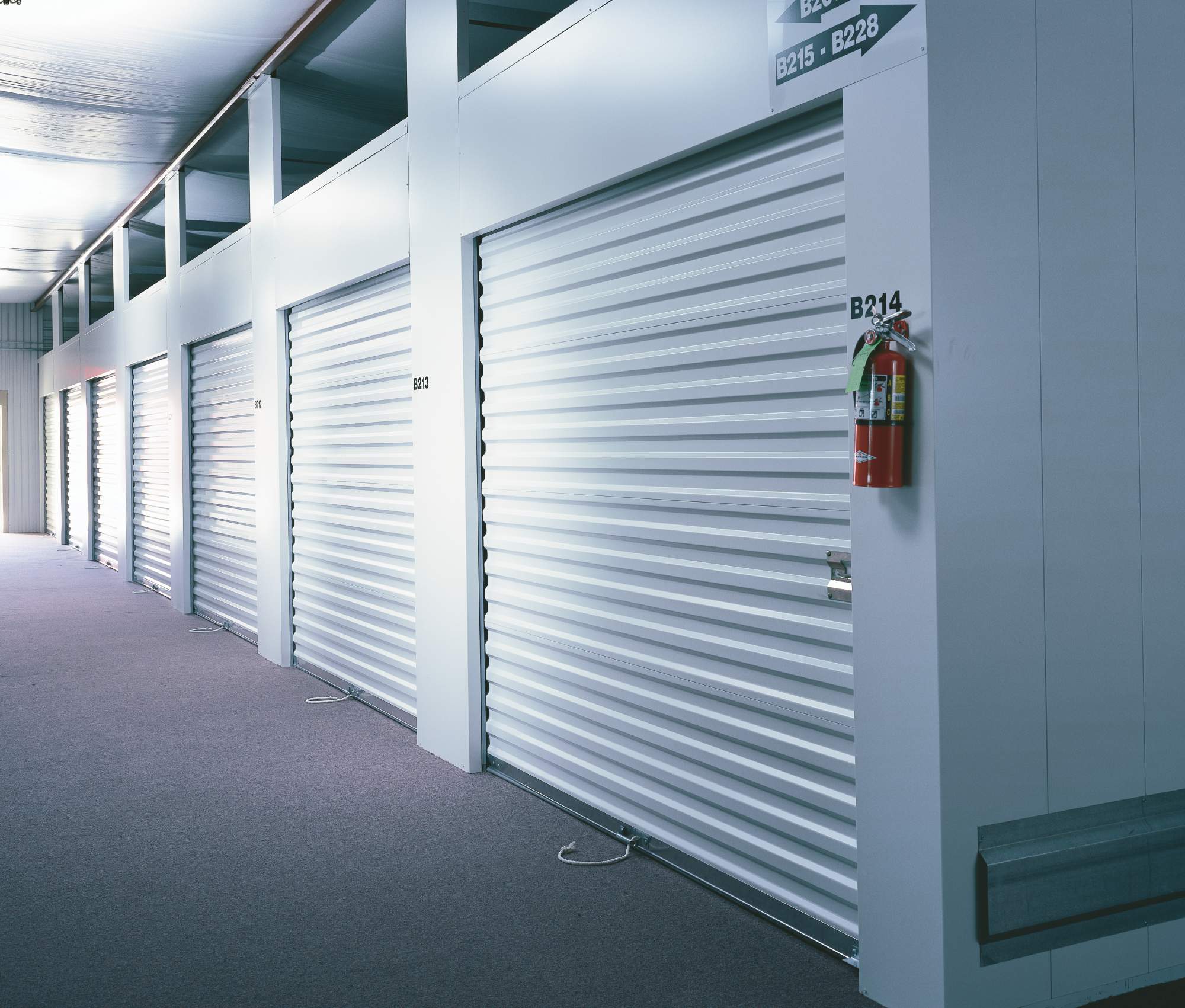

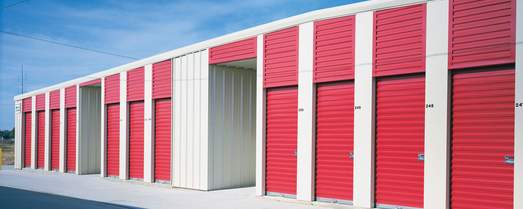

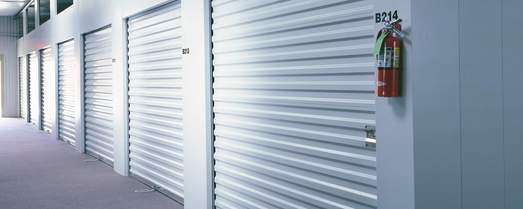

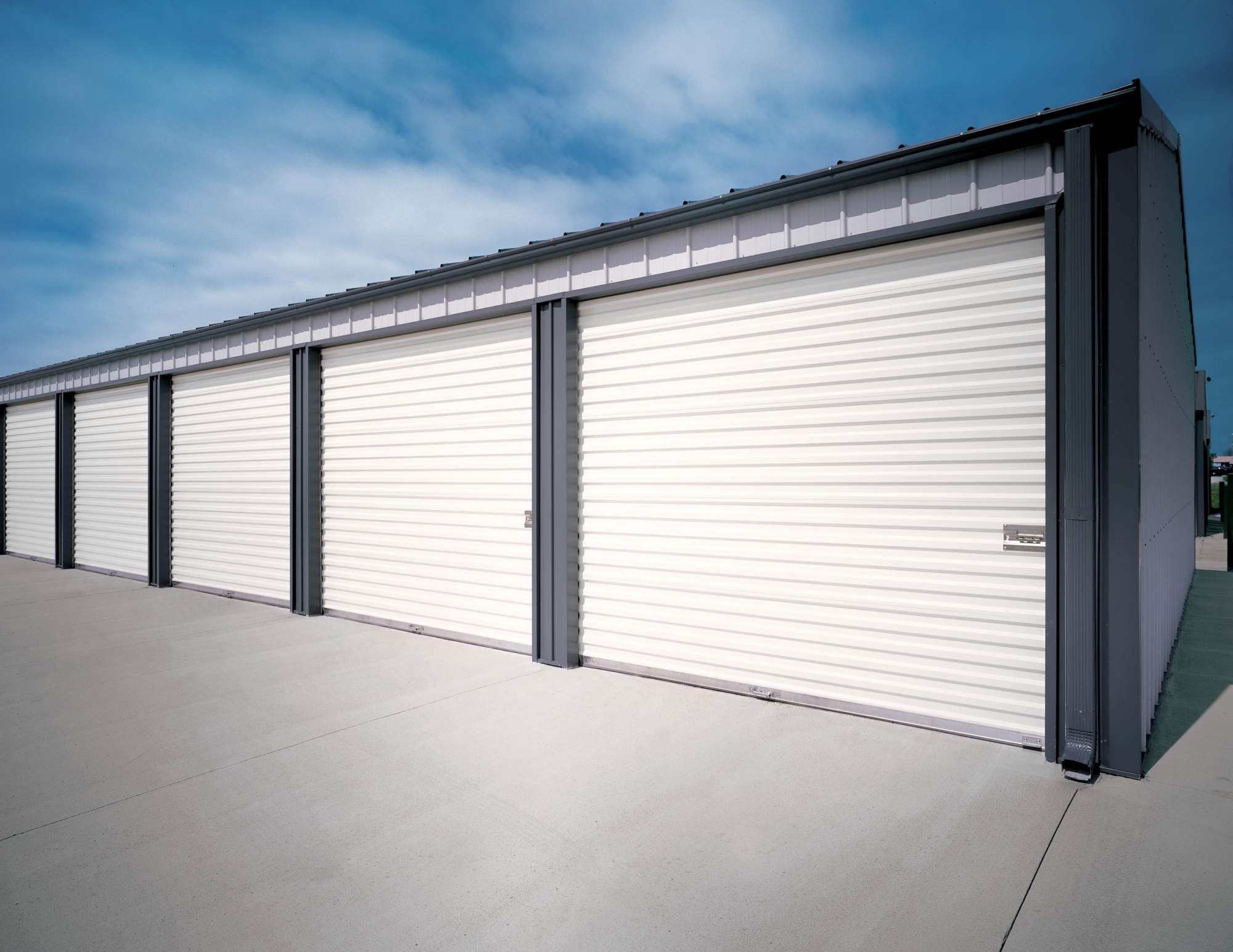

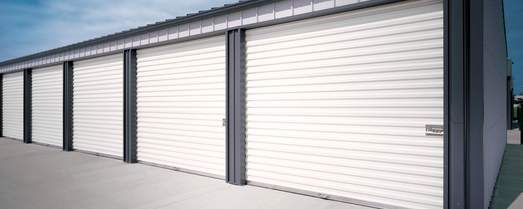

Rolling Sheet Doors

Key features include quick-connect components that simplify installation without sacrificing strength. A single, through-hole universal guide can be installed quickly and easily in concrete, masonry, steel or wood — and it requires minimal sideroom. Stepped curtain rings further minimize headroom by ensuring a tight curtain wrap, and standard roller bearings eliminate steel-on-steel contact for quieter, easier operation and extended life. Available in a variety of colors and sizes to fit openings from 3' wide by 7' high to 20' wide by 16' high (914 mm by 2134 mm to 6096 mm by 4877 mm), these full-feature doors are an ideal choice when functionality is as important as value, quality and aesthetics.

Series Image Max
WIDTH
Max
HEIGHT
Insulation Warranty
790cw Rolling Sheet Door

20'
(6096 mm)

16'
(4877 mm)

Non
Insulated

15-month
limited
Warranty

770ss Rolling Sheet Door

10'
(3048 mm)

10'
(3048 mm)



Non
Insulated

15-month
limited
Warranty
